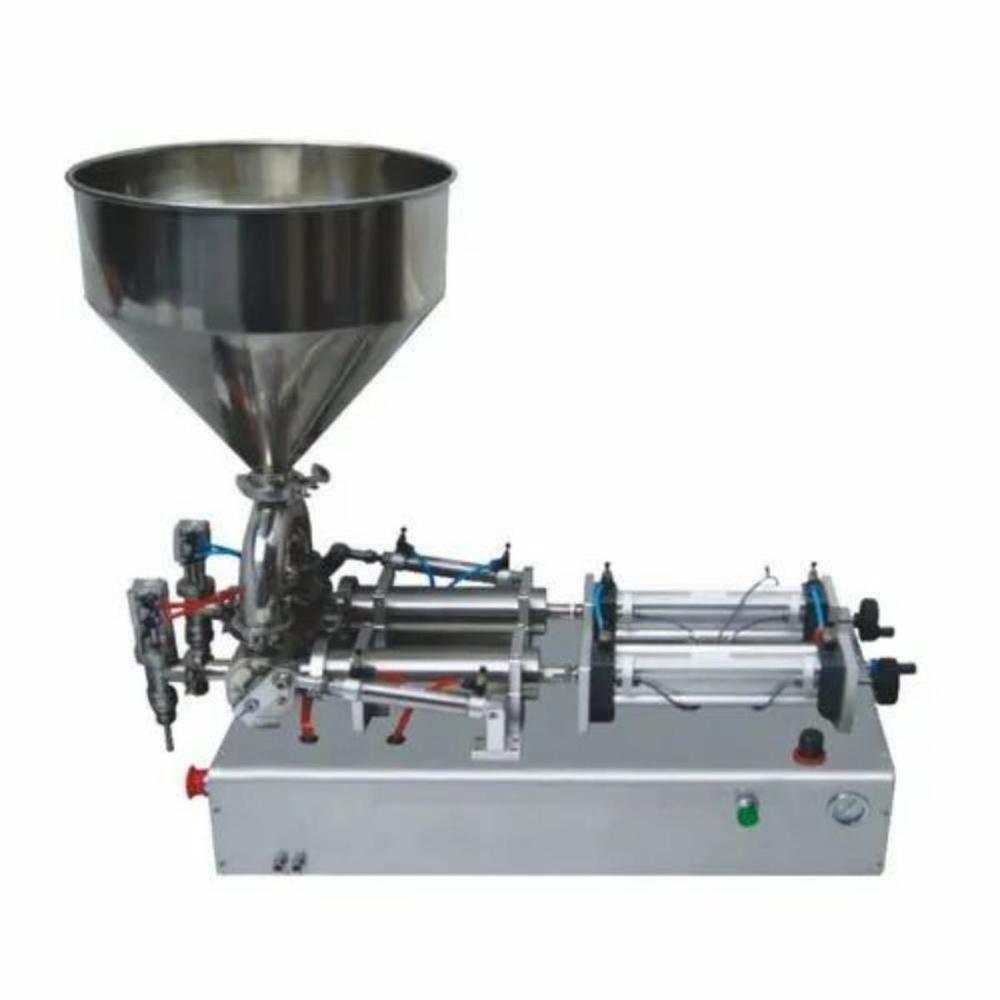

SEMI AUTOMATIC PASTE FILLING MACHINE

Name: SEMI AUTOMATIC PASTE FILLING MACHINE
Brand: Worship Packaging Llp
Price: 32500.0 INR
Availability: InStock

Price 32500.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

SEMI AUTOMATIC PASTE FILLING MACHINE Specification

Product Type
Paste Filling Machine

Material
SS

Computerized
No

Automatic Grade
Semi-Automatic

Control System
Human Machine Interface

Drive Type
Electric

Voltage
110-215 Volt (v)

Feature
ECO Friendly

Warranty
1 Year

SEMI AUTOMATIC PASTE FILLING MACHINE Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Cash Against Delivery (CAD), Cash on Delivery (COD), Cash Advance (CA), Cash in Advance (CID)

Supply Ability
1 Piece Per Day

Delivery Time
1 Week

Sample Available
No

Packaging Details
WOODEN BOX PACKING .

Main Export Market(s)
Asia

Main Domestic Market
All India

About SEMI AUTOMATIC PASTE FILLING MACHINE

Specifications

Brand: Generic (Imported)

Weight (Approx.) : 25 kg

Power source : 220V/110V

Phase : Single

Frequency : 50Hz

Filling Head : Single Head

Filling Volume : 100-1000 ml

Capacity of Hopper : 20 L

Air Supply : 200 LPM

Air Pressure : 0.6 Mpa

Efficiency : 600-1500 bottles per hr

NOTE : This machine is not suitable for Grease filling.

Toolsvilla deals in various types of Packaging Machinery. Wide variety of Liquid & Paste Filling Machine are equipment used in different industries like cosmetics, pharmaceutical, food & beverages industries where liquids are to be packed or filled up in various types of containers. Some of these liquids have high viscosity or thickness and hence require special machines to fill up the containers.

Description

This is ideal semi-auto filling equipment for medicament, light industry, food, pesticide and other special industry. Simple operation is the main feature of the machine. The piston and hopper of the cylinder are made up of 304 stainless steel and Polytetrafluoroethylene (PTEF). It accords with GMP requirement. The filling range and speed are adjustable. Filling unit has a function of leaking-proof, silk nuzzling-proof. The machine is able to change to multi-head, burst-proof and flood-proof filling unit according to the requirement of customers.

Features

Semi-automatic piston type filling machine.

Automatic and manual switch, Emergency stop switch, you could stop and start the machine at any time.

High accuracy filling, Filling volume and speed can be arbitrary regulation.

Simple and reasonable structure, easy operation. All the parts that will contact the materials were made of 304 stainless steel, large-scope chrome plating structural parts, effectively prevent rust and stuck.

This pneumatic filling machine is of wide applicability.

It is suitable for filling viscosity liquid-like sauce, jam, shampoo, lotion, perfume, etc with soft particulate.

Applications

Food Industry : One of the primary applications of the single nozzle paste filling machine is in the food industry. It is designed to fill containers with high viscosity products such as sauces, creams, and other food items.

Cosmetic Industry : In the cosmetic sector, the single nozzle paste filling machine is utilized for filling products that have a thick consistency.

Pharmaceutical Industry : The pharmaceutical sector employs single nozzle paste filling machines for packaging various medicinal products.

Chemical Industry : In chemical manufacturing, these machines are used to fill containers with viscous chemicals and adhesives.

Usage

Setup the Machine :

Place the machine on a stable, flat surface.

Ensure that all parts are securely assembled according to the manufacturers instructions.

Adjust the Filling Volume :

Set the desired filling volume (between 100-1000 ml) using the adjustment knob.

Prepare the Paste :

Ensure that the paste is at an appropriate viscosity for filling. If necessary, mix or dilute it to achieve optimal flow.

Fill the Hopper :

Pour the prepared paste into the hopper of the machine, ensuring not to overfill.

Select Operating Mode :

Choose between manual or automatic mode based on your production needs.

Start Filling Process :

Press the start button or activate the foot pedal to begin filling.

Monitor the process to ensure consistent filling and check for any clogs or issues.

Collect Filled Containers :

Position containers under the nozzle to catch filled paste.

Ensure containers are stable and aligned properly for accurate filling.

Robust Construction & Versatile Application

Built entirely from stainless steel, this paste filling machine offers strength and excellent corrosion resistance, contributing to its longevity. Suitable for various viscous and semi-viscous products, it is an efficient choice for fabricators, retailers, and wholesalers alike. Its application stretches across multiple industries due to its sturdy design and adaptability.

User-Friendly Control & Reliable Performance

Featuring a Human Machine Interface (HMI), the machine allows intuitive adjustments and precise control over filling operations. The electric drive ensures consistent performance, adapting smoothly to the required voltage range (110-215 V). The semi-automatic nature reduces manual fatigue while maintaining operator oversight for quality assurance.

FAQs of SEMI AUTOMATIC PASTE FILLING MACHINE:

Q: How does the semi automatic paste filling machine operate?

A: The machine utilizes an electric drive and a Human Machine Interface for easy operation. Operators manually align containers, while the filling process is automated to a large extent, ensuring precise portioning of paste-based products with minimal human effort.

Q: What are the main benefits of using this machine for paste filling tasks?

A: Key advantages include durability due to stainless steel construction, easy operation through HMI, versatility in handling different paste consistencies, and reliability provided by the 1-year warranty. Its eco-friendly design also contributes to sustainable production.

Q: When and where is it ideal to use this semi automatic paste filling machine?

A: This machine is particularly well-suited for small to medium manufacturing units, retailers, and wholesalers in India who deal in sauces, creams, or similar products. It is best applied where efficiency is needed but full automation is not required.

Q: What is the process for operating and maintaining the machine?

A: To operate, place containers under the filling nozzle and use the HMI to set parameters. Routine maintenance involves regular cleaning of contact parts, checking for wear, and ensuring the electric components function smoothly. The design simplifies disassembly for cleaning.

Q: How eco-friendly is the machine compared to traditional models?

A: The machines energy-efficient electric drive and minimal manual labor requirements contribute to its eco-friendly profile. Stainless steel construction further aids in long-term sustainability by resisting corrosion and reducing replacement needs.

Q: What type of warranty support is provided with the machine?

A: A manufacturers warranty of one year is provided, covering mechanical and electrical faults not related to misuse, offering added peace of mind to buyers.
